0.57mm Galvanized High Ribbed Formwork For Tunnels Bridges

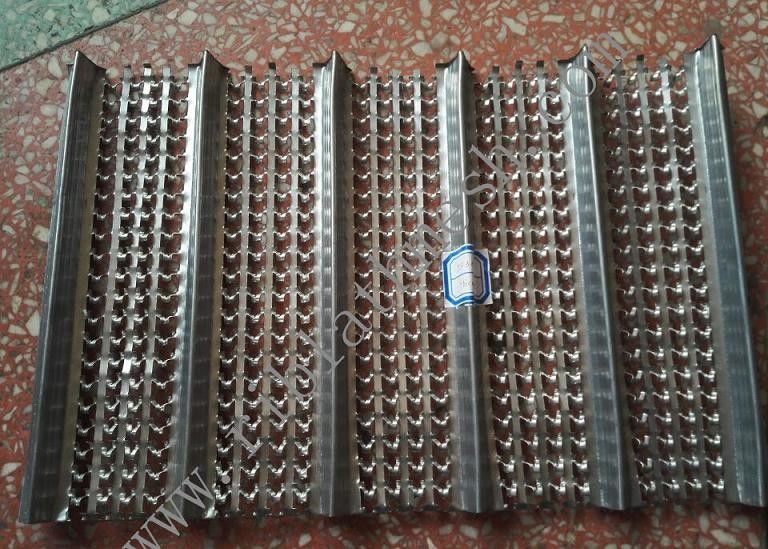

Large Image : 0.57mm Galvanized High Ribbed Formwork For Tunnels Bridges

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	XINGTAI
Model Number:	XTH20

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	500-1000PCS/PALLET
Delivery Time:	15-20DAYS
Supply Ability:	5000PCS/DAY

Contact Now

Detailed Product Description

MATERIAL:	Hot Galvanized Plate	WIDTH:	0.45M
Length:	2-3m	Color:	Silver
Thickness:	0.18-0.57mm	Rib Height:	14-20mm
Highlight:	high ribbed formwork galvanized , galvanize high ribbed formwork , galvanization high ribbed formwork

0.57mm Galvanized High Ribbed Formwork Widely Used In Tunnels Bridges

High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets.This goods is not welded. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Specification:

Thickness:0.18-0.57mm

Rib Height:14-20mm

Width:0.45m

Length:1m-4m

packing:500 or 1000pcs/pallet

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
018	0.18	1.35	450	2200	15	90
021	0.21	1.60	450	2200	15	90
023	0.23	1.70	450	2200	15	90
025	0.25	1.90	450	2200	15	90
030	0.30	2.45	450	2200	15	90
035	0.35	2.90	450	2200	15	90
0.40	0.40	3.30	450	2200	15	90

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
2021	0.21	1.70	450	2200	20	90
2023	0.23	1.90	450	2200	20	90
2025	0.25	2.10	450	2200	20	90
2030	0.30	2.50	450	2200	20	90
2035	0.35	2.90	450	2200	20	90
2040	0.40	3.40	450	2200	20	90
2045	0.45	3.80	450	2200	20	90
2050	0.50	4.10	450	2200	20	90
2057	0.57	4.70	450	2200	20	90

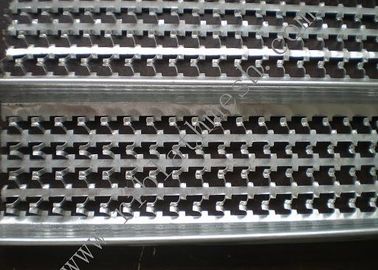

0.57mm Galvanized High Ribbed Formwork For Tunnels Bridges 0
