0.45m Width Galvanized High Ribbed Formwork Rib Lath Mesh For Building

Name: 0.45m Width Galvanized High Ribbed Formwork Rib Lath Mesh For Building
Brand: JiaFu
SKU: JFHR15
Rating: 4.7 (109 reviews)

Large Image : 0.45m Width Galvanized High Ribbed Formwork Rib Lath Mesh For Building

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	JiaFu
Model Number:	JFHR15

Payment & Shipping Terms:

Minimum Order Quantity:	500
Packaging Details:	500 or 1000pcs/pallet
Delivery Time:	15-20days
Supply Ability:	5000pcs/day

Contact Now

Detailed Product Description

Name:	HY Rib Mesh	WIDTH:	0.45M
LENGTH:	2-3M	Rib Height:	15mm
Thickness:	0.18-0.4mm	MATERIAL:	Galvanized Plate
Highlight:	marine engineering works high ribbed formwork , marine engineering high ribbed formwork , building projects high ribbed formwork

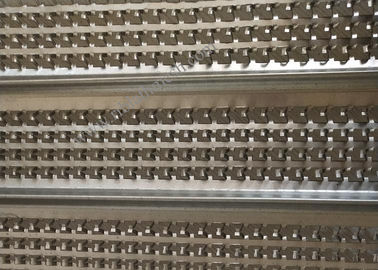

0.45m Width Galvanized High Ribbed Formwork for the Building 3m Length

High Ribbed Formwork is made of the hot dipped plate.We could produce the Length less than 4 meters.It has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Specification:

The follows is the 15mm Height specification for you reference:

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
018	0.18	1.35	450	2200	15	90
021	0.21	1.60	450	2200	15	90
023	0.23	1.70	450	2200	15	90
025	0.25	1.90	450	2200	15	90
030	0.30	2.45	450	2200	15	90
035	0.35	2.90	450	2200	15	90
0.40	0.40	3.30	450	2200	15	90

0.45m Width Galvanized High Ribbed Formwork Rib Lath Mesh For Building 0
