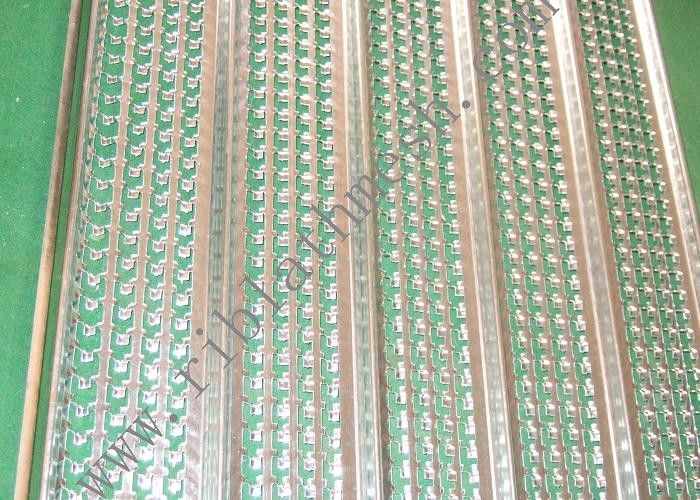

0.18mm Hy Rib Mesh

Large Image : 0.18mm Hy Rib Mesh

Product Details:

Place of Origin:	ANPING HEBEI CHINA
Brand Name:	JiaFu
Model Number:	JFHY018

Payment & Shipping Terms:

Minimum Order Quantity:	500
Packaging Details:	500 or 1000pcs/pallet
Delivery Time:	15-20days
Supply Ability:	5000pcs/day

Contact Now

Detailed Product Description

Name:	HY Rib Mesh	WIDTH:	0.45M
LENGTH:	2-3M	Rib Height:	15mm
Thickness:	0.18-0.4mm	MATERIAL:	Galvanized Plate
Highlight:	0.18mm hy rib mesh , galvanized plate hy rib mesh , galvanized plate hy rib formwork

0.18mm Thickness Galvaized HY Rib Mesh 2m Length As Concrete Permanent Assembly-Free Form Work.

15mm Rib Height HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath

Feature:

HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Raw Material:

Hot-dipped galvanized steel sheets

Specification:

The follows is the 15mm Height specification for you reference:

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
018	0.18	1.35	450	2200	15	90
021	0.21	1.60	450	2200	15	90
023	0.23	1.70	450	2200	15	90
025	0.25	1.90	450	2200	15	90
030	0.30	2.45	450	2200	15	90
035	0.35	2.90	450	2200	15	90
0.40	0.40	3.30	450	2200	15	90

How to Install High Ribbed Formwork

0.18mm Hy Rib Mesh 0
